• Universal AC Input
• Constant Current and Constant Voltage dual mode operation
for flexibility and optimal performance
• User-adjustable Output Voltage and Current
• Up to 92% Efficiency
• Active Power Factor Correction, PF>0.9
• Heavy duty design for harsh environments
• Up to 4 output channels (can be combined)
• Built-in protection: SCP, OTP, OVP, OCP
• UL/cUL Class 1 and 2, CE, FCC Title 47 CFR 15 Class B,PSE
• IP 65
Coming in a smart and slim form factor, the basic model is ideal for space restrained applications. Efficient, Reliable and easy to install, the XLD 75-SI (75 Watt power rating) is fully potted and can work in extremely low temperature environments (-40°C to +60°C). This unit features universal input 90-305 VAC and its user-friendly output voltage/current adjust pots allow you to easily tune the unit to drive your system at the appropriate power levels enabling flexibility and compatibility with a wide variety of indoor/outdoor LED lighting systems.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 90-305 | 1 | 0.50-5.25 | 6-12 | 8.4-12.6 | 0-5.25 | 60 | 60 |
| 90-305 | 1 | 0.50-5.25 | 7.5-15 | 10.5-15.8 | 0-5.25 | 75 | 75 |
| 90-305 | 1 | 0.31-3.30 | 12-24 | 16.8-25.2 | 0-3.30 | 75 | 75 |
| 90-305 | 1 | 0.21-2.18 | 18-36 | 25.2-37.8 | 0-2.18 | 75 | 75 |
| 90-305 | 1 | 0.16-1.65 | 24-48 | 33.6-50.4 | 0-1.65 | 75 | 75 |
| Part Number |
|---|
| XLD75-112V-SI |
| XLD75-115V-SI |
| XLD75-124V-SI |
| XLD75-136V-SI |
| XLD75-148V-SI |

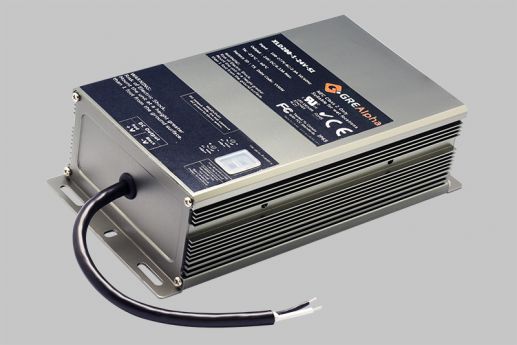

Coming in a smart and slim form factor, the basic model is ideal for space restrained applications. Efficient, Reliable and easy to install, the XLD 200 SI (200 Watt power rating) offers up to 4 channels output and is fully potted and can work in extremely low temperature environments (-40°C to +60°C). With User adjustable output voltage and current pots, this universal input 90-305 VAC this versatile model is suitable for a wide range of high powered LED lighting applications.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 90-305 | 1 | 1.67-17.50 | 6-12 | 8.4-12.6 | 0-17.5 | 200 | 200 |
| 90-305 | 1 | 0.83-8.75 | 12-24 | 16.8-25.2 | 0-8.75 | 200 | 200 |
| 90-305 | 1 | 0.42-4.38 | 24-48 | 33.6-50.4 | 0-4.38 | 200 | 200 |
| 90-305 | 1 | 0.29-3.00 | 35-70 | 49.0-73.5 | 0-3.00 | 200 | 200 |
| 90-305 | 1 | 0.19-2.00 | 52.5-105 | 73.5-110.3 | 0-2.00 | 200 | 200 |
| 90-305 | 2 | 0.42-8.75 | 12-24 | 16.8-25.2 | 0-4.38 | 100 | 200 |
| 90-305 | 2 | 0.28-5.83 | 18-36 | 25.2-37.8 | 0-2.92 | 100 | 200 |
| 90-305 | 2 | 0.21-4.38 | 24-48 | 33.6-50.4 | 0-2.92 | 100 | 200 |
| 90-305 | 3 | 0.44-14.0 | 7.5-15 | 10.5-15.8 | 0-4.67 | 70 | 200 |
| 90-305 | 3 | 0.28-8.75 | 12-24 | 16.8-25.2 | 0-2.92 | 70 | 200 |
| 90-305 | 3 | 0.22-7.0 | 15-30 | 21.0-31.5 | 0-2.33 | 70 | 200 |
| 90-305 | 3 | 0.19-5.83 | 18-36 | 25.2-37.8 | 0-1.94 | 70 | 200 |
| 90-305 | 3 | 0.14-4.38 | 24-48 | 33.6-50.4 | 0-1.46 | 70 | 200 |
| 90-305 | 4 | 0.42-17.5 | 6-12 | 8.4-12.6 | 0-4.38 | 53 | 200 |
| Part Number |
|---|
| XLD200-1-12V-SI |
| XLD200-1-24V-SI |
| XLD200-1-48V-SI |
| XLD200-1-70V-SI |
| XLD200-1-105V-SI |
| XLD200-2-24V-SI |
| XLD200-2-36V-SI |
| XLD200-2-48V-SI |
| XLD200-3-15V-SI |
| XLD200-3-24V-SI |
| XLD200-3-30V-SI |
| XLD200-3-36V-SI |
| XLD200-3-48V-SI |
| XLD200-4-12V-SI |
