• Universal AC Input
• AC ON/OFF Power Switch with LED indicator for easy monitoring
and installation
• Easy-monitor LED indicator for DC output
• Constant Current and Constant Voltage dual mode operation for
flexibility and optimal performance
• Active Power Factor Correction, PF>0.9
• Heavy duty design for harsh environments
• User-adjustable Output Voltage and Current
• Up to 4 output channels (can be combined)
• Built-in protection: SCP, OTP, OVP, OCP
• UL / cUL Class 1 and 2, CE, FCC Title 47 CFR 15 Class B,PSE
• IP 65
Efficient, Reliable and easy to install, the XLD 75-SS (75 Watt power rating) is fully potted and can work in extremely low temperature environments (-40°C to +60°C). This unit features universal input 90-305 VAC and its user-friendly output voltage/current adjust pots allow you to easily tune the unit to drive your system at the appropriate power levels enabling flexibility and compatibility with a wide variety of indoor/outdoor LED lighting systems.
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
90-305 | 1 | 0.50-5.25 | 6-12 | 8.4-12.6 | 0-5.25 | 60 | 60 |
90-305 | 1 | 0.50-5.25 | 7.5-15 | 10.5-15.8 | 0-5.25 | 75 | 75 |
90-305 | 1 | 0.50-5.25 | 12-24 | 16.8-25.2 | 0-3.30 | 75 | 75 |
90-305 | 1 | 0.21-2.18 | 18-36 | 25.2-37.8 | 0-2.18 | 75 | 75 |
90-305 | 1 | 0.16-1.65 | 24-48 | 33.6-50.4 | 0-1.65 | 75 | 75 |
Part Number |
---|
XLD75-112V-SS |
XLD75-115V-SS |
XLD75-124V-SS |
XLD75-136V-SS |
XLD75-148V-SS |

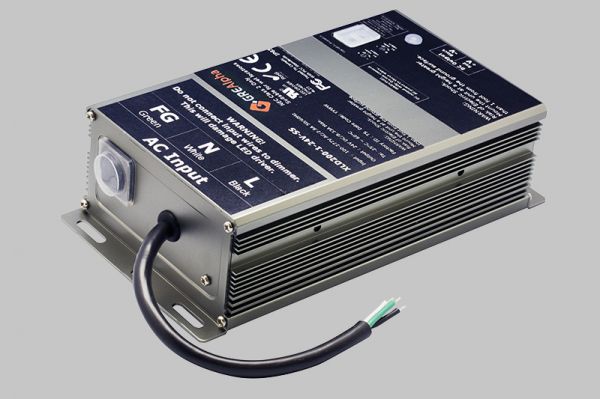

Efficient, Reliable and easy to install, the XLD 200 SS (200 Watt power rating) offers up to 4 channels output and is fully potted and can work in extremely low temperature environments (-40°C to +60°C). With User adjustable output voltage and current pots, this universal input 90-305 VAC this versatile model is suitable for a wide range of high powered LED lighting applications.
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
90-305 | 1 | 1.67-17.5 | 6-12 | 8.4-12.6 | 0-17.5 | 200 | 200 |
90-305 | 1 | 0.83-8.75 | 12-24 | 16.8-25.2 | 0-8.75 | 200 | 200 |
90-305 | 1 | 0.42-4.38 | 24-48 | 33.6-50.4 | 0-4.38 | 200 | 200 |
90-305 | 1 | 0.29-3.00 | 35-70 | 49-73.5 | 0-3.00 | 200 | 200 |
90-305 | 1 | 0.19-2.00 | 52.5-105 | 73.5-110.3 | 0-2.00 | 200 | 200 |
90-305 | 2 | 0.42-8.75 | 12-24 | 16.8-25.2 | 0-8.75 | 100 | 200 |
90-305 | 2 | 0.28-5.83 | 18-36 | 25.2-37.8 | 0-5.83 | 100 | 200 |
90-305 | 2 | 0.21-4.38 | 24-48 | 33.6-50.4 | 0-4.38 | 100 | 200 |
90-305 | 3 | 0.44-14.00 | 7.5-15 | 10.5-15.8 | 0-14.00 | 70 | 200 |
90-305 | 3 | 0.28-8.75 | 12-24 | 16.8-25.2 | 0-8.75 | 70 | 200 |
90-305 | 3 | 0.22-7.00 | 15-30 | 21.0-31.5 | 0-7.00 | 70 | 200 |
90-305 | 3 | 0.19-5.83 | 18-36 | 25.2-37.8 | 0-5.83 | 70 | 200 |
90-305 | 1 | 0.14-4.38 | 24-48 | 33.6-50.4 | 0-4.38 | 70 | 200 |
90-305 | 4 | 0.42-17.5 | 6-12 | 8.4-12.6 | 0-17.5 | 53 | 200 |
Part Number |
---|
XLD200-1-12V-SS |
XLD200-1-24V-SS |
XLD200-1-48V-SS |
XLD200-1-70V-SS |
XLD200-1-105V-SS |
XLD200-2-24V-SS |
XLD200-2-36V-SS |
XLD200-2-48V-SS |
XLD200-3-15V-SS |
XLD200-3-24V-SS |
XLD200-3-30V-SS |
XLD200-3-36V-SS |
XLD200-3-48V-SS |
XLD200-4-12V-SS |
