• Universal AC Input
• Integral wiring compartments for reduced installation costs
• Constant Current and Constant Voltage dual mode operation for
flexibility and optimal performance
• User-adjustable Output Voltage and Current
• 1-10V dimming options with SLD Smart Dim series dimming module
• Up to 92% Efficiency
• Active Power Factor Correction, PF>0.9
• Heavy duty design for harsh environments
• Up to 4 output channels (can be combined)
• Built-in protection: SCP, OTP, OVP, OCP
• IP 65 standalone enclosure
• UL /cUL Listed* Class 1 and 2, CE, FCC Title 47 CFR 15 Class B, CCC,PSE

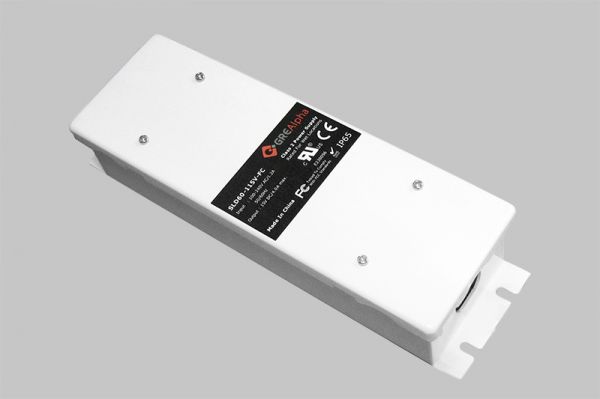

The SLD60 is a highly reliable and installation ready, class 2, switched-mode, AC/DC LED driver, with 90-264VAC input, rated for maximum output of 60 Watts. This driver offers user adjustable output voltage/current trim-pots, and is the industry's only LED power supply, with built-in wiring compartments. This allows all wiring to be done inside the unit, without the need for external junction boxes, which saves on cost and installtion time. All units are fully potted and are rated IP65, making them suitable for a wide range of LED lighting and signage applications.
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
90-264 | 1 | 0.50-5.00 | 5-10 | 7.5-11.0 | 0-5.00 | 50 | 50 |
90-264 | 1 | 0.50-5.00 | 6-12 | 9.0-13.2 | 0-5.00 | 60 | 60 |
90-264 | 1 | 0.40-4.00 | 7.5-15 | 11.3-16.5 | 0-4.00 | 60 | 60 |
90-264 | 1 | 0.33-3.33 | 9-18 | 13.5-19.8 | 0-3.33 | 60 | 60 |
90-264 | 1 | 0.29-2.86 | 10.5-21 | 15.8-23.1 | 0-2.86 | 60 | 60 |
90-264 | 1 | 0.25-2.50 | 12-24 | 18.0-26.4 | 0-2.50 | 60 | 60 |
90-264 | 1 | 0.13-1.25 | 24-48 | 36.0-52.8 | 0-1.25 | 60 | 60 |
Part Number |
---|
SLD60-110V-FC |
SLD60-112V-FC |
SLD60-115V-FC |
SLD60-118V-FC |
SLD60-121V-FC |
SLD60-124V-FC |
SLD60-148V-FC |
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
90-305 | 1 | 0.50-5.25 | 6-12 | 8.4-12.6 | 0-5.25 | 60 | 60 |
90-305 | 1 | 0.50-5.25 | 7.5-15 | 10.5-15.8 | 0-5.25 | 75 | 75 |
90-305 | 1 | 0.31-3.30 | 12-24 | 16.8-25.2 | 0-3.30 | 75 | 75 |
90-305 | 1 | 0.21-2.18 | 18-36 | 25.2-37.8 | 0-2.18 | 75 | 75 |
90-305 | 1 | 0.16-1.65 | 24-48 | 33.6-50.4 | 0-1.65 | 75 | 75 |
Part Number |
---|
XLD75-112V-FC |
XLD75-115V-FC |
XLD75-124V-FC |
XLD75-136V-FC |
XLD75-148V-FC |
The SLD 120 is an installation-ready, dual channel, 120 Watt, LED driver. This switched-mode, AC/DC design comes with 90-264VAC input, adjustable voltage/current trim pots, and is fully potted to enable maximum flexibility of usage, for both indoor and outdoor LED lighting applications. This unit’s revolutionary design allows for all DC and AC wiring to be done inside the unit, without the need for external junction boxes, saving you valuable time and installation costs, as well as improving overall reliability of your LED lighting system.
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
90-264 | 2 | 0.50-10.0 | 7-10.5 | 7.0-10.5 | 0-5.00 | 53 | 100 |
90-264 | 2 | 0.50-10.0 | 8.4-12.6 | 8.4-12.6 | 0-5.00 | 63 | 120 |
90-264 | 2 | 0.50-8.00 | 10.5-15.8 | 10.5-15.8 | 0-5.00 | 79 | 120 |
90-264 | 2 | 0.50-6.67 | 12.6-18.9 | 12.6-18.9 | 0-5.00 | 95 | 120 |
90-264 | 1 | 0.46-5.70 | 14.7-22.1 | 14.7-22.1 | 0-4.57 | 100 | 120 |
90-264 | 2 | 0.40-5.00 | 16.8-25.2 | 16.8-25.2 | 0-4.00 | 100 | 120 |
90-264 | 1 | 0.36-4.44 | 18.9-28.4 | 18.9-28.4 | 0-3.55 | 100 | 120 |
90-264 | 2 | 0.27-3.33 | 25.2-37.8 | 25.2-37.8 | 0-2.66 | 100 | 120 |
90-264 | 2 | 0.20-2.50 | 33.6-50.4 | 33.6-50.4 | 0-2.00 | 100 | 120 |
Part Number |
---|
SLD120-210V-FC |
SLD120-212V-FC |
SLD120-215V-FC |
SLD120-218V-FC |
SLD120-221V-FC |
SLD120-224V-FC |
SLD120-227V-FC |
SLD120-236V-FC |
SLD120-248V-FC |

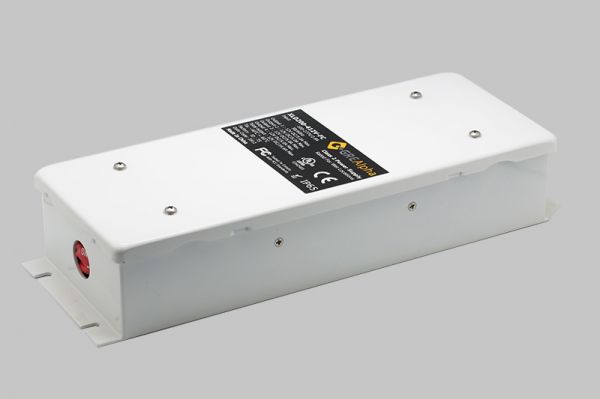

The GRE Alpha XLD series is the industry’s only UL Listed LED driver. As a standalone unit, this unique patented, conduit- ready, LED power supply will enable complete installation of your system without having to install external junction boxes saving you invaluable time and money in installation and approvals. It’s as simple as plug-and play! Efficient, Reliable and easy to install, the XLD 200 (200 Watt power rating) offers up to 4 channels output and is fully potted and can work in extremely wide temperature environments ( -40°C to 60°C). With User adjustable output voltage and current pots, this universal input 90-305 VAC this versatile model is suitable for a wide range of high powered LED lighting applications.
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
90-305 | 1 | 1.67-17.5 | 6-12 | 8.4-12.6 | 0-17.5 | 200 | 200 |
90-305 | 1 | 0.83-8.75 | 12-24 | 16.8-25.2 | 0-8.75 | 200 | 200 |
90-305 | 1 | 0.42-8.75 | 24-48 | 33.6-50.4 | 0-4.38 | 200 | 200 |
90-305 | 1 | 0.29-3.00 | 35-70 | 49-73.5 | 0-3.00 | 200 | 200 |
90-305 | 1 | 0.19-2.00 | 52.5-105 | 73.5-110.3 | 0-2.00 | 200 | 200 |
90-305 | 2 | 0.42-8.75 | 12-24 | 16.8-25.2 | 0-4.38 | 100 | 200 |
90-305 | 2 | 0.28-5.83 | 18-36 | 25.2-37.8 | 0-2.92 | 100 | 200 |
90-305 | 2 | 0.21-4.38 | 24-48 | 33.6-50.4 | 0-2.19 | 100 | 200 |
90-305 | 3 | 0.44-14.00 | 7.5-15 | 10.5-15.8 | 0-4.67 | 70 | 200 |
90-305 | 3 | 0.28-8.75 | 12-24 | 16.8-25.2 | 0-2.92 | 70 | 200 |
90-305 | 3 | 0.22-7.00 | 15-30 | 21.0-31.5 | 0-2.33 | 70 | 200 |
90-305 | 3 | 0.19-5.83 | 18-36 | 25.2-37.8 | 0-1.94 | 70 | 200 |
90-305 | 3 | 0.14-4.38 | 24-48 | 33.6-50.4 | 0-1.46 | 70 | 200 |
90-305 | 4 | 0.42-17.5 | 6-12 | 8.4-12.6 | 0-4.38 | 53 | 200 |
Part Number |
---|
XLD200-1-12V-FC |
XLD200-1-24V-FC |
XLD200-1-48V-FC |
XLD200-1-70V-FC |
XLD200-1-105V-FC |
XLD200-2-24V-FC |
XLD200-2-36V-FC |
XLD200-2-48V-FC |
XLD200-3-15V-FC |
XLD200-3-24V-FC |
XLD200-3-30V-FC |
XLD200-3-36V-FC |
XLD200-3-48V-FC |
XLD200-4-12V-FC |
