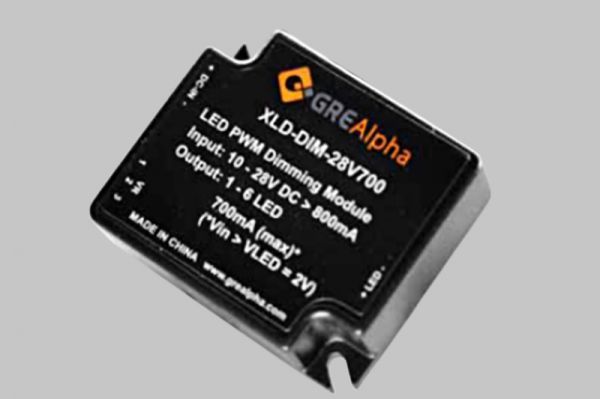

XLD-DIM Eco-Dim DC Dimmable LED Module
The XLD dimmer is a revolutionary dimming module designed to integrate into your LED lighting fixture to enable smooth, Pulse Width Modulated (PWM) dimming. With its form fitting design, the module is engineered to fit inside any lighting fixture and when combined with a variable resistor/potentiometer will provide smooth flicker free dimming. This unit supports up to 28VDC x 1000mA, or 28 Watts of input power. This module is compatible with any AC/DC Converter making it an ideal accessory for your dimming needs.
XLD-DIM Eco-Dim DC Dimmable LED Module
The XLD dimmer is a revolutionary dimming module designed to integrate into your LED lighting fixture to enable smooth, Pulse Width Modulated (PWM) dimming. With its form fitting design, the module is engineered to fit inside any lighting fixture and when combined with a variable resistor/potentiometer will provide smooth flicker free dimming. This unit supports up to 28VDC x 1000mA, or 28 Watts of input power. This module is compatible with any AC/DC Converter making it an ideal accessory for your dimming needs.
Input Voltage Range (VDC) |
Channels Output |
Current Output Rating | Voltage Output Rating | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
Min. Current (A) |
Max. Current (A) |
Min. Voltage (V) |
Max. Voltage (V) |
||||
10-28 | 1 | 0.35 | 2.5 | 26 | 9 | 9 | |
10-28 | 1 | 0.7 | 2.5 | 26 | 18 | 18 | |
10-28 | 1 | 0.8 | 2.5 | 26 | 21 | 21 | |
10-28 | 1 | 1 | 2.5 | 26 | 26 | 26 |
Part Number |
---|
XLD-DIM-28V350- |
XLD-DIM-28V700- |
XLD-DIM-28V800- |
XLD-DIM-28V1000- |
