• UL/cUL Listed versions available*
• Universal AC Input
• Up to 90% Efficiency
• User adjustable output voltage
• Dynamic load response technology
• 1-10V dimming options with SLD Smart Dim series dimming module
• Active Power Factor Correction, PF > 0.9
• Built-in protection: SCP, OTP, OVP, OCP
• UL / cUL Class 1 and 2, CB, CE, FCC Title 47 CFR 15 Class B
• IP 65

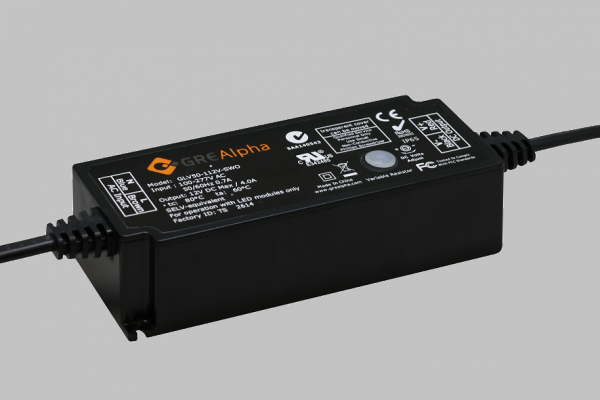

50W Constant Voltage LED Driver
The GLV50 constant voltage 50 W driver comes in a smart and compact form factor making it an ideal power supply for a wide range of LED lighting application. With universal 90-305 VAC input and user-adjustable output voltage setting, this power supply provides the widest flexibility available on market. This Series is CB, UL/cUL certified and comes with a three years warranty.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-277 | 1 | 6-12.6 | 0-4.00 | 48 | 50 | ||
| 100-277 | 1 | 7.5-15.8 | 0-3.50 | 53 | 55 | ||
| 100-277 | 1 | 12.0-25.2 | 0-2.00 | 48 | 50 | ||
| 100-277 | 1 | 18-37.8 | 0-1.40 | 50 | 50 | ||
| 100-277 | 1 | 24-50.4 | 0-1.00 | 48 | 50 | ||
| Part Number |
|---|
| GLV50-112V- |
| GLV50-115V- |
| GLV50-124V- |
| GLV50-136V- |
| GLV50-148V- |
